ASTM F1929 — Dye Penetration Testing of Porous Packaging
Detect seal defects in porous sterile barrier materials
What It Is
ASTM F1929 is the Standard Test Method for Detecting Seal Leaks in Porous Medical Packaging by Dye Penetration. It uses a dye solution applied to the exterior of a sealed package to detect channels, voids, or defects in heat seals that could compromise sterile barrier integrity. The test is specifically designed for packages with at least one porous surface (such as Tyvek-to-film pouches or header bags) and provides a pass/fail result based on whether dye penetrates through the seal to the interior.
When You Need It
You need ASTM F1929 testing when verifying sterile barrier integrity after distribution simulation or aging, when validating sealing processes for porous packaging, when evaluating the effect of sterilization on seal integrity, or as part of an ISO 11607 sterile barrier system qualification.
What We Do

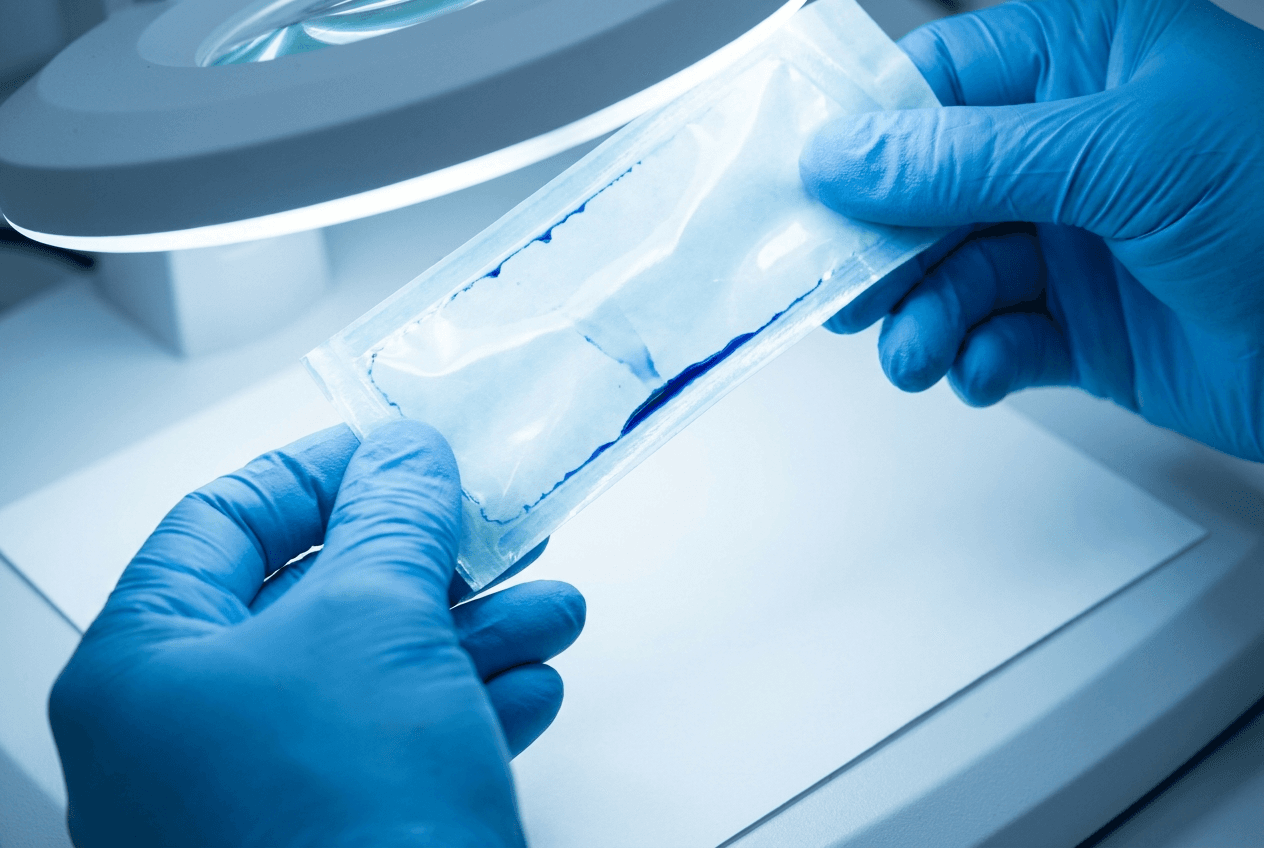

Boulder Package Testing executes ASTM F1929 dye penetration tests under controlled conditions. We apply the specified dye solution, allow the prescribed contact time, and evaluate seal integrity visually and under magnification. All results are documented with photographs and traceable to specific sample IDs in your validation protocol.
Equipment & Methodology
Dye penetration test station with specified dye solutions, controlled application fixtures, and visual inspection with magnification.
How It Fits Into ISO 11607
ASTM F1929 is a primary method for demonstrating sterile barrier integrity as required by ISO 11607-1 Clause 5 (sterile barrier system requirements).
Learn more about ISO 11607 validation programs →Frequently Asked Questions
Can ASTM F1929 be used on non-porous packaging?
No. ASTM F1929 is designed for packages with at least one porous surface (e.g., Tyvek). For non-porous packages, use ASTM F2096 (bubble leak) or other methods appropriate for the material.
Is dye penetration testing destructive?
Yes. ASTM F1929 is a destructive test — samples cannot be returned to inventory after testing. Plan your sample sizes accordingly in your validation protocol.
What size seal channel can ASTM F1929 detect?
ASTM F1929 is sensitive to channel defects on the order of approximately 50 microns when the test is performed according to the standard. Sensitivity depends on dye contact time, seal geometry, and operator technique, all of which are controlled in our protocol.
Which dye penetration method should I use — Method A, B, or C?
Method A uses dye injection into the package interior; Method B applies an edge-dip; Method C uses a syringe-applied dye externally along the seal. Method B is the most common for finished pouches in ISO 11607 validation programs, but the method choice should be defined in your protocol.
